Preview SQL with Manual Approval

Harness DB DevOps allows you to integrate a Preview SQL step in your pipeline to review generated SQL before applying schema changes to the database.
This workflow ensures governance, visibility, and control, as you can add a Manual Approval step between previewing and executing the changes.

The typical workflow looks like this:

  1. Clone the Git repository containing migration scripts.
  2. Run the Preview SQL step to generate SQL for the changes.
  3. Pause the pipeline at a Manual Approval gate for human verification.
  4. After approval, proceed with the DB Schema Apply step to deploy the changes.

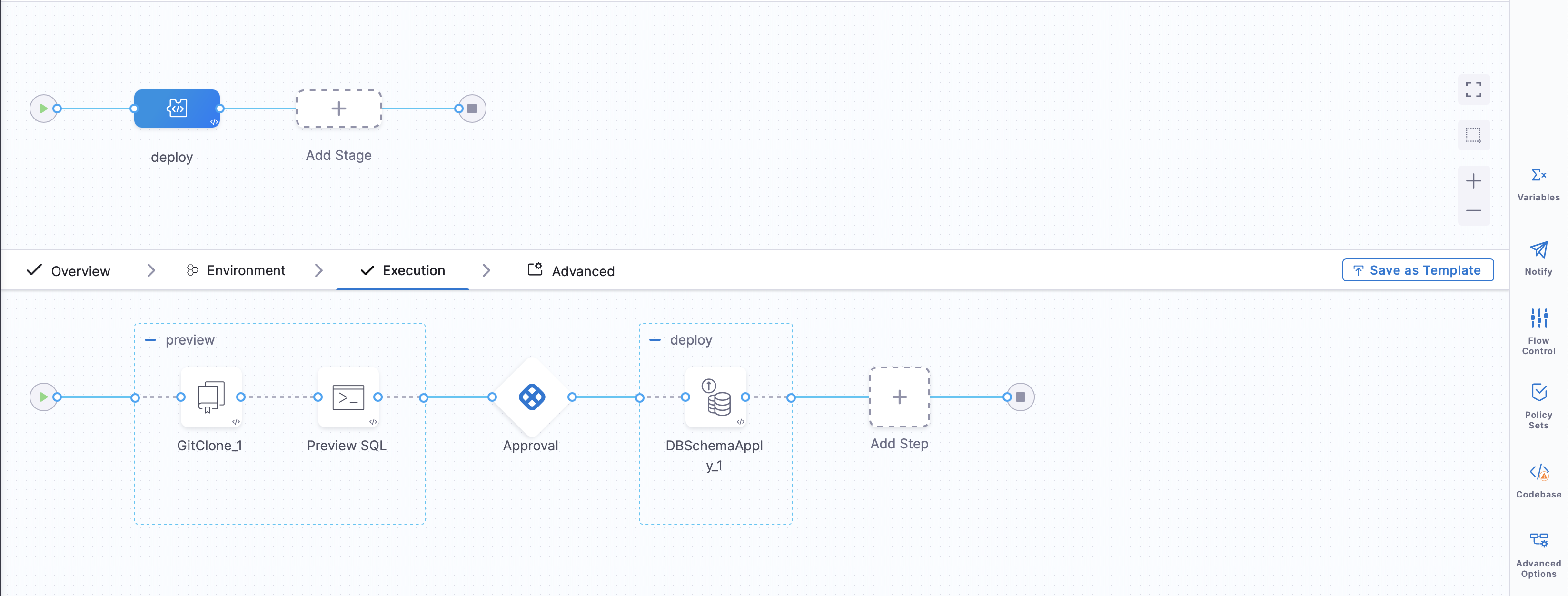

preview-and-approval-using-harness-ui

Setting Up the Workflow​

In your pipeline’s Execution tab, add the following steps:

StepDescription
Git CloneClones the migration scripts from the connected Git repository.
Preview SQLGenerates SQL statements from your changelog or schema definition.
ApprovalAdds a manual approval gate where users must review and confirm SQL changes.
DB Schema ApplyApplies the approved SQL changes to the target database instance.

SQL Preview​

The Preview SQL step shows a generated SQL script based on the detected changes.
This allows DBAs and developers to:

  • Validate the correctness of the SQL.
  • Identify potential issues such as destructive changes.
  • Ensure compliance with internal policies.

Example output:

CREATE TABLE products
(
    id SERIAL,
    name TEXT NOT NULL,
    price NUMERIC(10,2) NOT NULL DEFAULT 0.00,
    CONSTRAINT products_pkey PRIMARY KEY (id)
);

Manual Approval Step​

The Approval step acts as a gate in the pipeline. When the pipeline reaches this stage:

  • A notification is sent to the designated approvers.
  • Approvers can review the Preview SQL output before continuing.
  • The pipeline proceeds to the DB Schema Apply step only after approval. This ensures that no schema changes are deployed without human validation.

Applying Schema Changes​

After approval, the pipeline executes the Apply Schema step. This deploys the reviewed SQL script to the configured database instance. For example:

  • Preview SQL: shows the generated ALTER TABLE statement.
  • Approval: DBA confirms the change is safe.
  • DB Schema Apply: Executes the approved change on the target database.
